Description

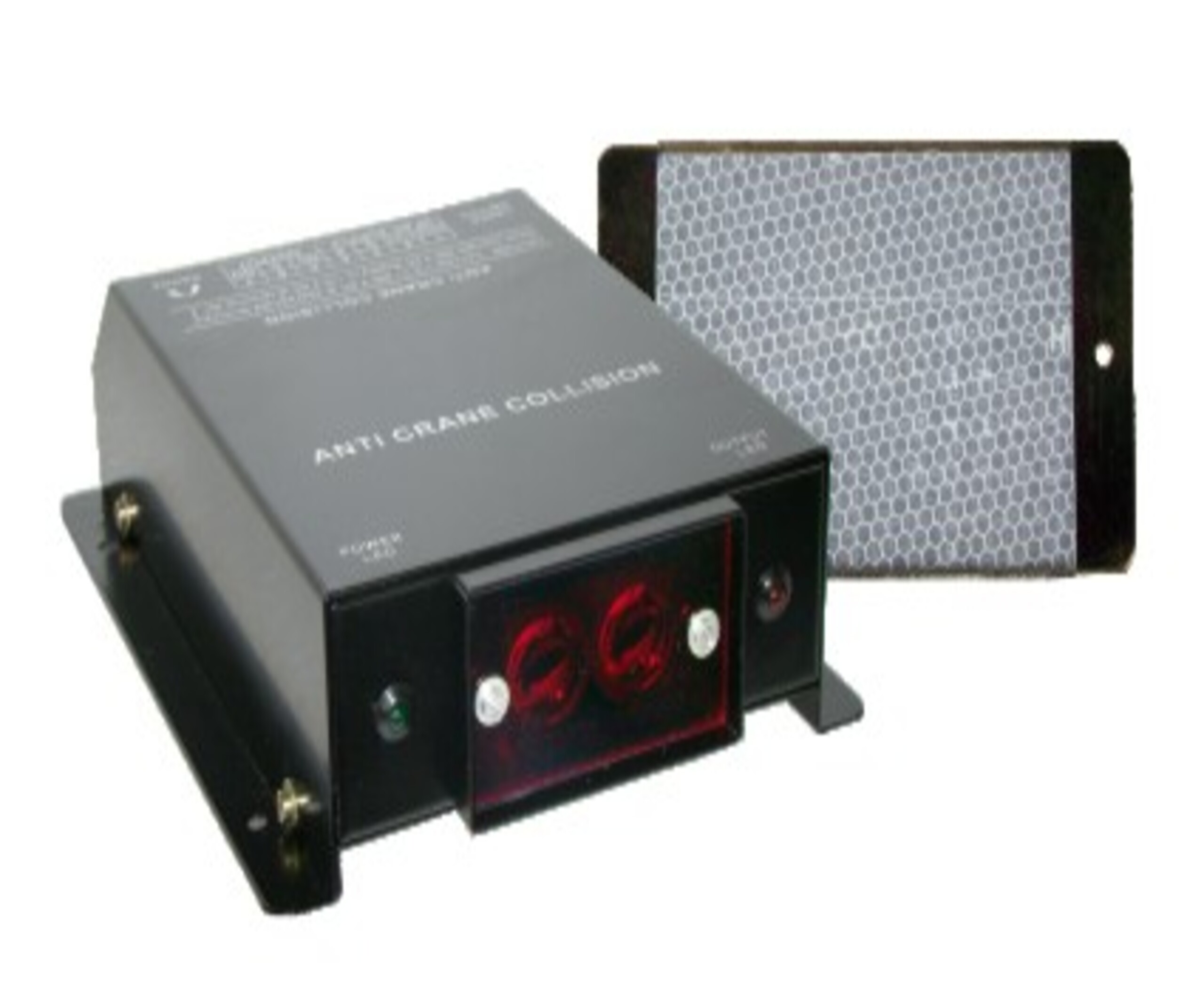

Anti Crane Collision switch for teo over head cranes on the same rail.

These units are installed on two cranes on the same rail approaching each other with these units , the two cranes on the same rail will never collide with each other & thus the demage caused due to collision can be saved .

The minimum distance in between two cranes will always be maintained , and the cranes will be able to move away from each other but not closer.

• Supply Voltage : 110 V AC or 220 V AC ( User selectable )
• Laser Alignment tool : Provided for Alignment of sensor and reflector
• output : Potential Free Relay Contacts
• Contacts Rating : 5 Amps ( max.) at 220 V AC
• Output Connetion : Through Terminal Strip
• Range Adjustment : 0 to 10 Mtrs.
• Housing : Metal/PVC Housing
